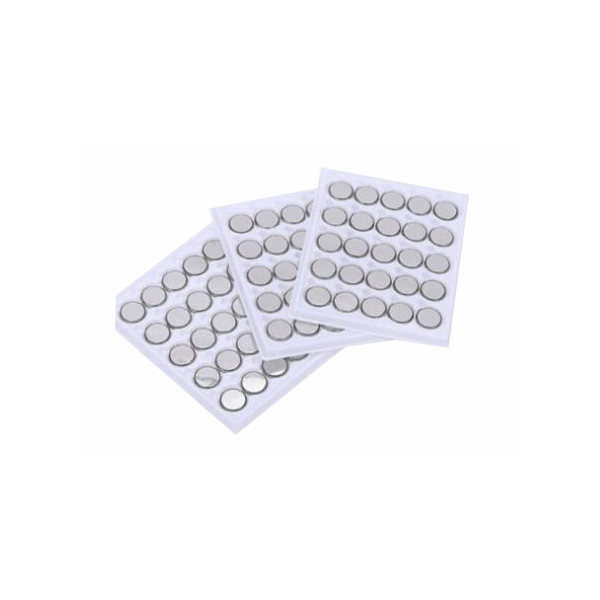

The Lithium-Manganese Dioxide Button Cell Battery is a primary battery with stainless steel as the container, metal lithium as the negative electrode, electrolytic manganese dioxide as the positive electrode, lithium inorganic salt and organic solvent as the electrolyte, and PP as the diaphragm. With advantages of high voltage (3V), high capacity and compact size, it is an ideal power supply for portable electronic products. There are more than 20 types of lithium manganese button cell batteries, ranging from CR927 to CR3032. The electronic scales are mainly with CR2032 and AAA or AA batteries.
+86 755 23029043
| Model | Voltage(V) | Nominal Capacity (mAh) | Standard (mA) | Continuous (Max)(mA) | Pulse (Max)(mA) | Dimension(mm) | Weight(g) | |
| Diameter | Height | |||||||
| Lithium Button Cell Batteries | ||||||||
| CR927 | 3 | 30 | 0.1 | 1 | 5 | 9 | 2.7 | 0.6 |
| CR1025 | 3 | 30 | 0.1 | 1 | 5 | 10 | 2.5 | 0.7 |
| CR1216 | 3 | 25 | 0.1 | 1 | 5 | 12.5 | 1.6 | 0.7 |
| CR1220 | 3 | 38 | 0.1 | 1 | 5 | 12.5 | 2 | 0.8 |
| CR1225 | 3 | 50 | 0.1 | 1 | 5 | 12.5 | 2.5 | 0.9 |
| CR1616 | 3 | 50 | 0.1 | 1.5 | 5 | 16 | 1.6 | 1.2 |
| CR1620 | 3 | 70 | 0.1 | 1.5 | 5 | 16 | 2 | 1.3 |
| CR1625 | 3 | 90 | 0.1 | 2 | 8 | 16 | 2.5 | 1.8 |
| CR1632 | 3 | 120 | 0.1 | 2 | 8 | 16 | 3.2 | 2 |
| CR2016 | 3 | 75 | 0.2 | 2 | 10 | 20 | 1.6 | 2 |
| CR2025 | 3 | 170 | 0.2 | 3 | 15 | 20 | 2.5 | 2.6 |
| CR2032 | 3 | 230 | 0.2 | 3 | 15 | 20 | 3.2 | 3.1 |
| CR2320 | 3 | 130 | 0.2 | 3 | 15 | 23 | 2 | 3 |
| CR2325 | 3 | 190 | 0.2 | 3 | 15 | 23 | 2.5 | 3.3 |
| CR2330 | 3 | 260 | 0.2 | 3 | 15 | 23 | 3 | 4 |
| CR2335 | 3 | 300 | 0.2 | 3 | 15 | 23 | 3.5 | 4.3 |
| CR2354 | 3 | 530 | 0.2 | 3 | 15 | 23 | 5.4 | 6 |
| CR2430 | 3 | 290 | 0.3 | 3 | 20 | 24.5 | 3 | 4.5 |
| CR2450 | 3 | 550 | 0.3 | 3 | 20 | 24.5 | 5 | 6.6 |
| CR2450C | 3 | 600 | 0.3 | 3 | 20 | 24.5 | 5 | 6.6 |
| CR2477 | 3 | 1000 | 0.3 | 3 | 20 | 24.5 | 7.7 | 10.5 |
| CR3032 | 3 | 500 | 0.3 | 3 | 20 | 30 | 3.2 | 6.8 |

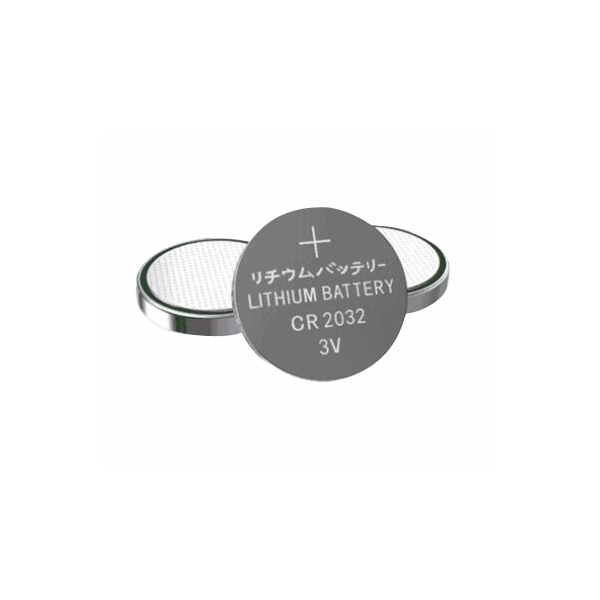

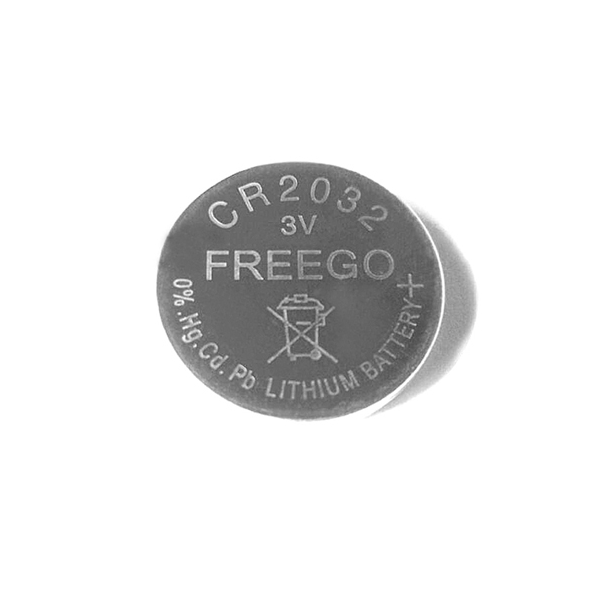

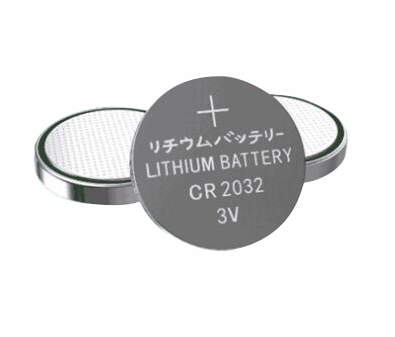

Lithium-Manganese Dioxide Button Cell
3V
With ROHS certificates
